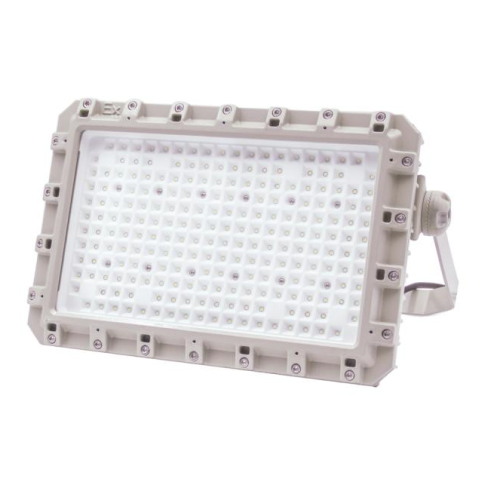

GYD780 Series Explosion Proof Flood Light

GYD780 Series

Features:

GYD780 series shell raw materials are adopted from ADC-12 aluminium, high strength, heat dissipation, and corrosion resistance.
The explosion-proof design allows it to be used in more than 99% of explosive atmospheres and dust-related locations.
More and thinner fins for efficient heat dissipation and can be used in ambient temperatures from -40°C to 55°C.
New generation of American CREE lamp beads with high-efficiency constant current MEANWELL driver.
Compared to the previous generation, 30% higher luminous efficacy, no strobe and more eye protection, high luminous efficacy, and more energy saving.
Optional 120°, 90°, and 60° luminous angles are available to meet the needs of multiple installation sites and brightness.

Description

Additional Information

Features:

GYD780 series shell raw materials are adopted from ADC-12 aluminium, high strength, heat dissipation, and corrosion resistance.
The explosion-proof design allows it to be used in more than 99% of explosive atmospheres and dust-related locations.
More and thinner fins for efficient heat dissipation and can be used in ambient temperatures from -40°C to 55°C.
New generation of American CREE lamp beads with high-efficiency constant current MEANWELL driver.
Compared to the previous generation, 30% higher luminous efficacy, no strobe and more eye protection, high luminous efficacy, and more energy saving.
Optional 120°, 90°, and 60° luminous angles are available to meet the needs of multiple installation sites and brightness.

Spesifikasi	GYD7801(L)	GYD7802(L)
Daya (Power)	<100W	<150W
Sertifikasi ATEX	II2G Ex db IIB T6/T5 Gb	II 2D Ex tb IIIC T80°C Db
Sertifikasi IECEx	Ex db IIB T6/T5 Gb; Ex tb IIIC T80°C Db	Ex tb IIIC T80°C Db
Tegangan (Voltage)	AC 100~277V, 50Hz/60Hz; 24/36VDC	AC 100~277V, 50Hz/60Hz; 24/36VDC
Efisiensi (Efficiency)	140lm/W	140lm/W
Indeks Rendering Warna (CRI)	Ra: ≥80	Ra: ≥80
Sertifikasi	CNEX, ATEX, IECEx, EAC	CNEX, ATEX, IECEx, EAC
Pilihan Pemasangan (Mounting)	Bracket, Pendant, Ceiling, Street Light, Wall	Bracket, Pendant, Ceiling, Street Light, Wall
